Carbon Steel oil level sight glass

  • Flender Inducstrial Gear Units Steel Oil sight Glass Plug BSP3/8
  • Flender Inducstrial Gear Units Steel Oil sight Glass Plug BSP3/8
  • Flender Inducstrial Gear Units Steel Oil sight Glass Plug BSP3/8
  • Flender Inducstrial Gear Units Steel Oil sight Glass Plug BSP3/8
Flender Inducstrial Gear Units Steel Oil sight Glass Plug BSP3/8 Flender Inducstrial Gear Units Steel Oil sight Glass Plug BSP3/8 Flender Inducstrial Gear Units Steel Oil sight Glass Plug BSP3/8 Flender Inducstrial Gear Units Steel Oil sight Glass Plug BSP3/8

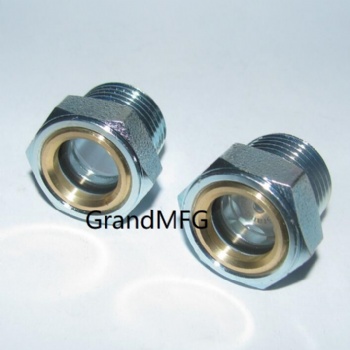

Flender Inducstrial Gear Units Steel Oil sight Glass Plug BSP3/8

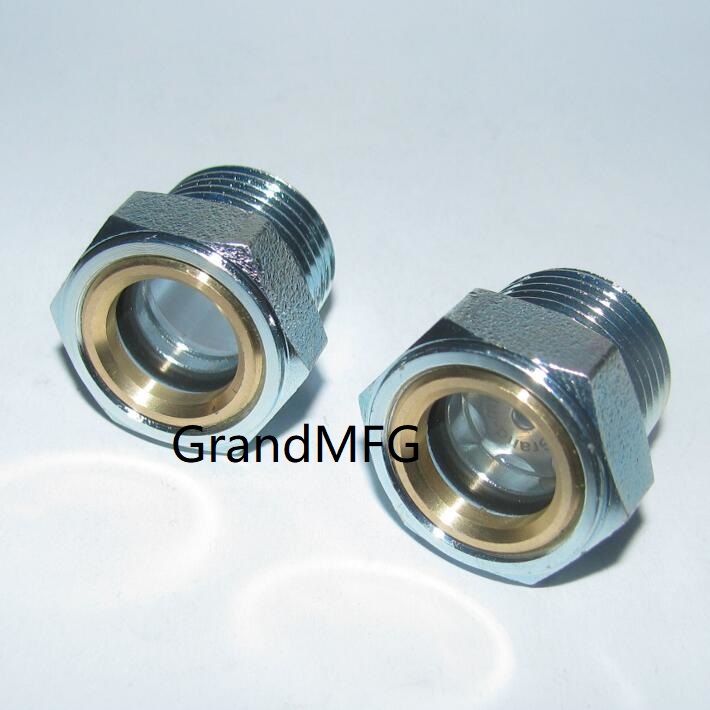

  • Carbon Steel Oil level sight glass Plated
  • Material Body:   Steel Plated(Zinc,Nickel plated and chrome plated)
  • O-Ring: Viton,FKM,FPM,NBR, Aramid gasket and Copper seal
  • Glass Thickness: 2mm to 8 mm
  • Reflectors: Stainless Steel 304 Reflector
  • Glass Type: Natural Glass,Tempered Glass and Borosilicate Glass
  • Resist Tempreature Range:-30'C to 180'C
  • Pressure Range:  5-50 Bar(0.5MPa to 5MPa).
  • Thread type:NPT,NPTF,UNC,UNF,Metric and BSP(G thread)
  • INQUIRY

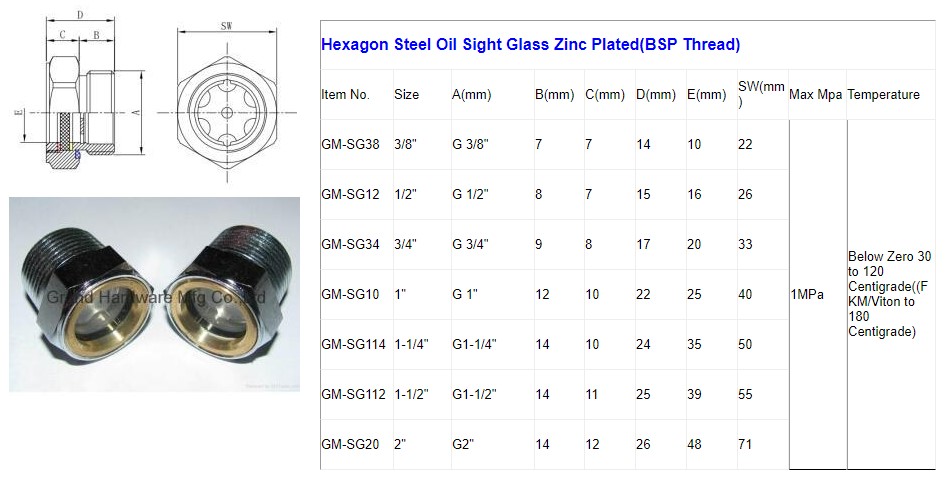

Hexagon Steel Oil Sight Glass(BSP Thread).JPG

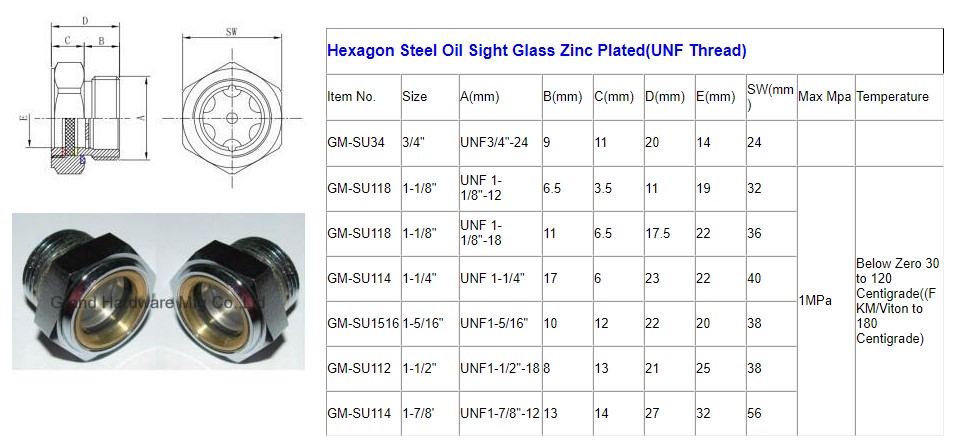

Hexagon Steel Oil Sight Glass Zinc Plated(UNF Thread).JPG

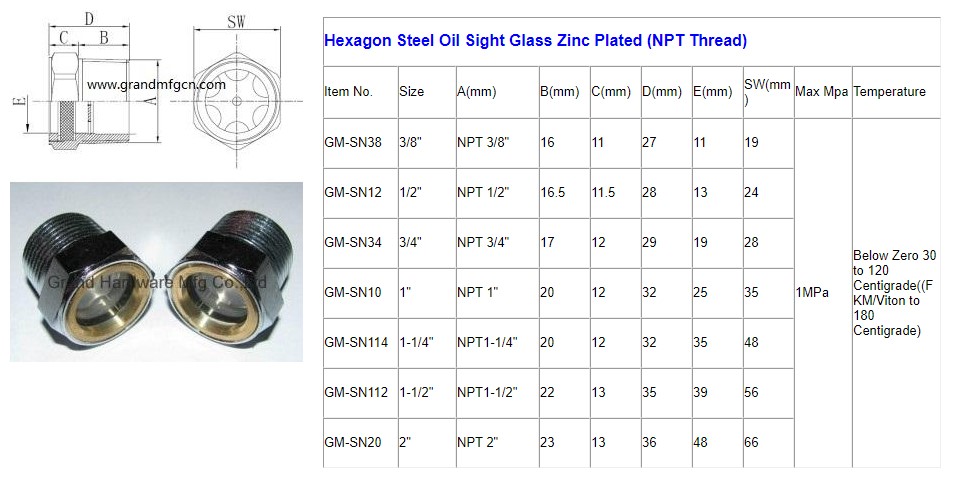

Hexagon Steel Oil Sight Glass Zinc Plated (NPT Thread).jpg


LINK TO:     GO TO GRAND-MFG CATALOGUE


Any special requirements just feel free to let us know.
